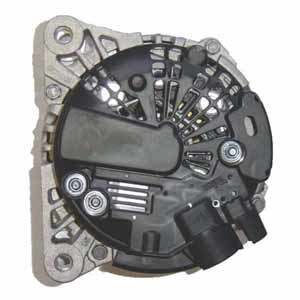

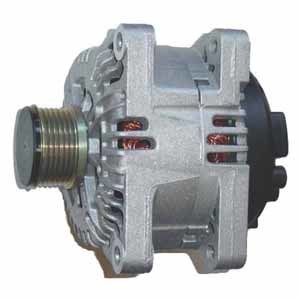

Product and Parts Breakdown for 100-115
500-437 - Pulley
Replacing F-229603.7,13 Application Valeo Citreon/Peugeot Clutch Pulley
500-214 - D/E Bearing
ID OD W 17mm 52mm 17mm Seal Both Sides
500-202 - SRE Bearing
ID OD W 15mm 35mm 11mm Seal Both Sides
500-164 - Regulator
Voltage Set Point 14.5V B Circuit With Soft Start
SA001 - Brush
Replacing PX602 SVX72 Application Valeo Alternators Brush Set Only
SR001 - Slip Ring
Replacing 230090 Application Valeo Alternators
500-601N - Diode Negative
Voltage 19/25 Negative Amps 65 Press Fit OD 11.20 OD Collar 12.75 Lead Length 21.13
500-601P - Diode Positive
Voltage 19/25 Positive Amps 65 Press Fit OD 11.20 OD Collar 12.75 Lead Length 21.13
