Product and Parts Breakdown for 100-269
500-217 - D/E Bearing
ID OD W 17mm 47mm 14mm Seal Both Sides
500-211 - SRE Bearing
ID OD W 15mm 35mm 13mm Seal Both Sides

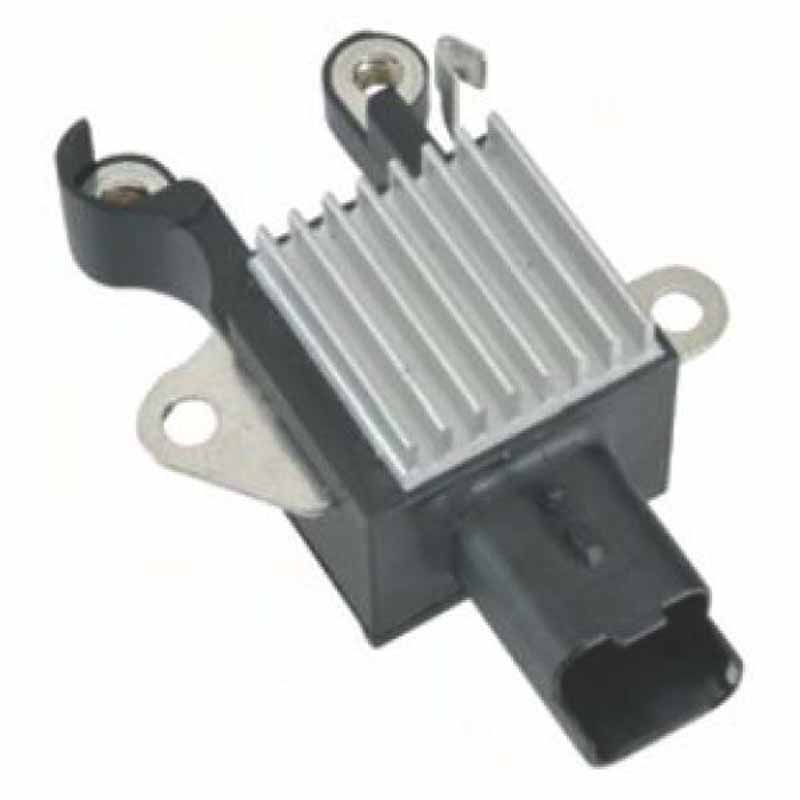

500-7089 - Regulator
Voltage Set Point 14.35 A Circuit Heavy Duty ASVR Design Welded construction - no solder joints for hi-temperature reliability & increased field life Short-circuit protection
BA002 - Brush
Replacing 235607 Denso 104210 Type Alternators
SR009 - Slip Ring
Replacing 239718 Application Denso 104210 Type
PL12-WL - Alt. Plug
Bosch / Valeo Alternator Plug 2 Pin With 300mm Lead Fits renault / peugeot L-DFM type Alternators
