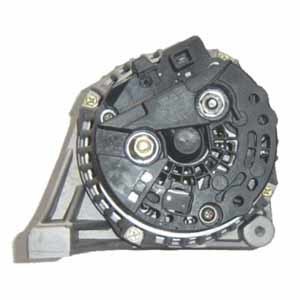

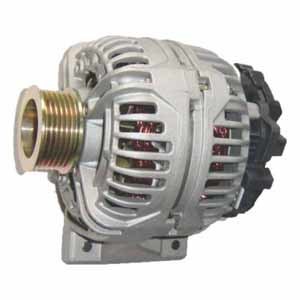

Product and Parts Breakdown for 100-179
500-214 - D/E Bearing
ID OD W 17mm 52mm 17mm Seal Both Sides
500-208 - SRE Bearing
ID OD W 17mm 35mm 10mm Seal Both Sides
500-103 - Regulator
Voltage Set Point 14.4V A Circuit Slipring OD : 14 mm
500-823 - Rectifier
B+ Post = 8 mm Note: Delta stator application. Features: 6–50A press–fit avalanche diodes
AC050 - End Cover
Bosch SRE Cover Fited To Bosch 0124 Alternators Replacing F00M146011 Cargo 139928
SR005 - Slip Ring
Replacing 135172 Application Bosch IR/IF Alternators
TR001 - Sundry 1
Bosch 0124 Series Tolerance Ring Fits 6003 Bearings Original Equipment
