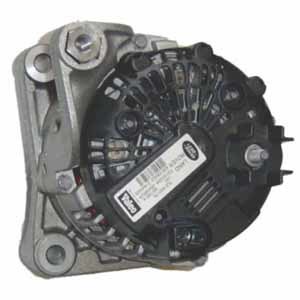

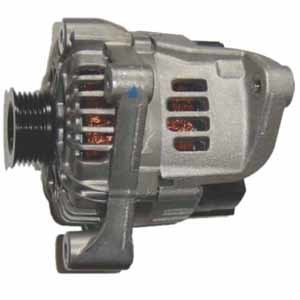

Product and Parts Breakdown for 100-139
500-217 - D/E Bearing
ID OD W 17mm 47mm 14mm Seal Both Sides
500-202 - SRE Bearing
ID OD W 15mm 35mm 11mm Seal Both Sides

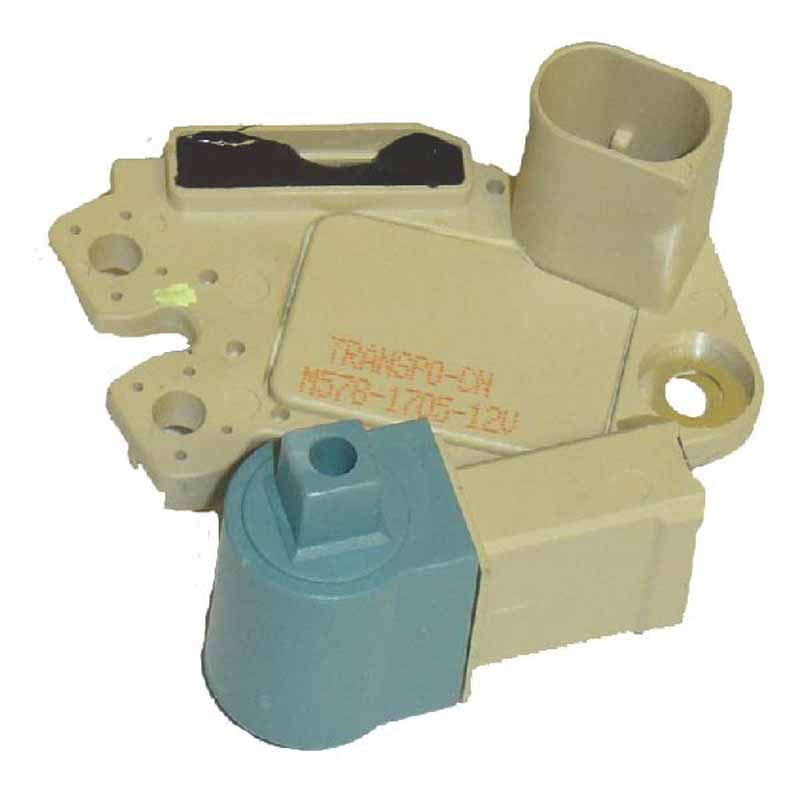

500-7078 - Regulator
Voltage Set Point 14.60V B Circuit High Side Drive Regulator
500-911 - Rectifier
B+ Post = 8 mm • 6-60A Avalanche press fit Diodes, 20-24V • Aluminum heatsink • Crimp-weld diode stem terminations
500-601N - Diode Negative
Voltage 19/25 Negative Amps 65 Press Fit OD 11.20 OD Collar 12.75 Lead Length 21.13
500-601P - Diode Positive
Voltage 19/25 Positive Amps 65 Press Fit OD 11.20 OD Collar 12.75 Lead Length 21.13
PL14-WL - Alt. Plug
Bosch / Valeo Alternator Plug 2 Pin With 300mm Lead
