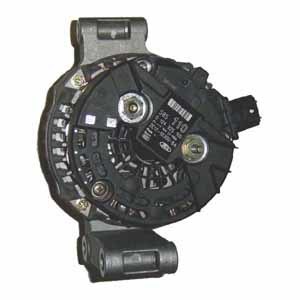

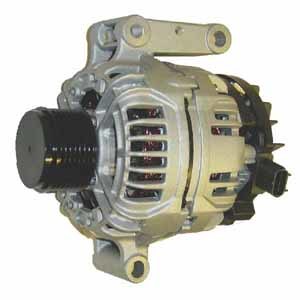

Product and Parts Breakdown for 100-098
500-403 - Pulley
Replacing 920574 Application Bosch Ford Transit Clutch Pulley
500-217 - D/E Bearing
ID OD W 17mm 47mm 14mm Seal Both Sides
500-208 - SRE Bearing
ID OD W 17mm 35mm 10mm Seal Both Sides
500-101 - Regulator
Voltage Set Point 14.5V A Circuit With Soft Start Slipring OD : 14 mm
500-802 - Rectifier
B+ Post = 8 mm D+ Post = 6mm Note: Y–wound stator applications Features: 6–50A press–fit avalanche diodes (20–24V)
AC050 - End Cover
Bosch SRE Cover Fited To Bosch 0124 Alternators Replacing F00M146011 Cargo 139928
SR005 - Slip Ring
Replacing 135172 Application Bosch IR/IF Alternators
PL1-WL - Alt. Plug
Ford Alternator Plug 3 Pin With 300mm Lead Fits All Uk 3 Pin Ford Alternators
