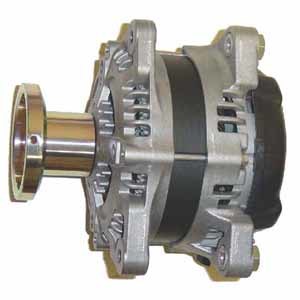

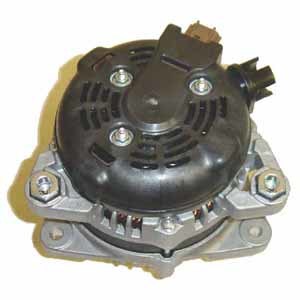

Product and Parts Breakdown for 100-396
500-217 - D/E Bearing
ID OD W 17mm 47mm 14mm Seal Both Sides
500-211 - SRE Bearing
ID OD W 15mm 35mm 13mm Seal Both Sides
500-7010 - Regulator
Voltage Set Point 14.0 A Circuit Replaces: (stamped 041005, PCM01) Note: Regulation voltage controlled by vehicle PCM.
500-817 - Rectifier
B+ Post = 8 mm Features: 12–50A press–fit avalanche diodes (20–24V) Aluminum heat sinks
SR009 - Slip Ring
Replacing 239718 Application Denso 104210 Type
PL1-WL - Alt. Plug
Ford Alternator Plug 3 Pin With 300mm Lead Fits All Uk 3 Pin Ford Alternators
