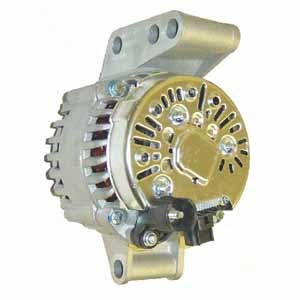

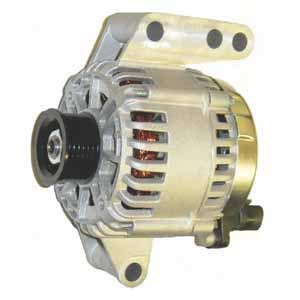

Product and Parts Breakdown for 100-136
500-217 - D/E Bearing
ID OD W 17mm 47mm 14mm Seal Both Sides
500-202 - SRE Bearing
ID OD W 15mm 35mm 11mm Seal Both Sides
500-131 - Regulator
Voltage Set Point 14.0V A Circuit PCM Controlled Regulation Voltage
500-830 - Rectifier
B+ Post = 6 mm Features: 8–50A avalanche press–fit diodes (22V, 39V)
BA001 - Brush
Replacing 238956 Ford RC28 Visteon Alternator
SR008 - Slip Ring
Replacing 237323 Application Visteon RC28-Series 1X Set
PL1-WL - Alt. Plug
Ford Alternator Plug 3 Pin With 300mm Lead Fits All Uk 3 Pin Ford Alternators
