Product and Parts Breakdown for 100-246

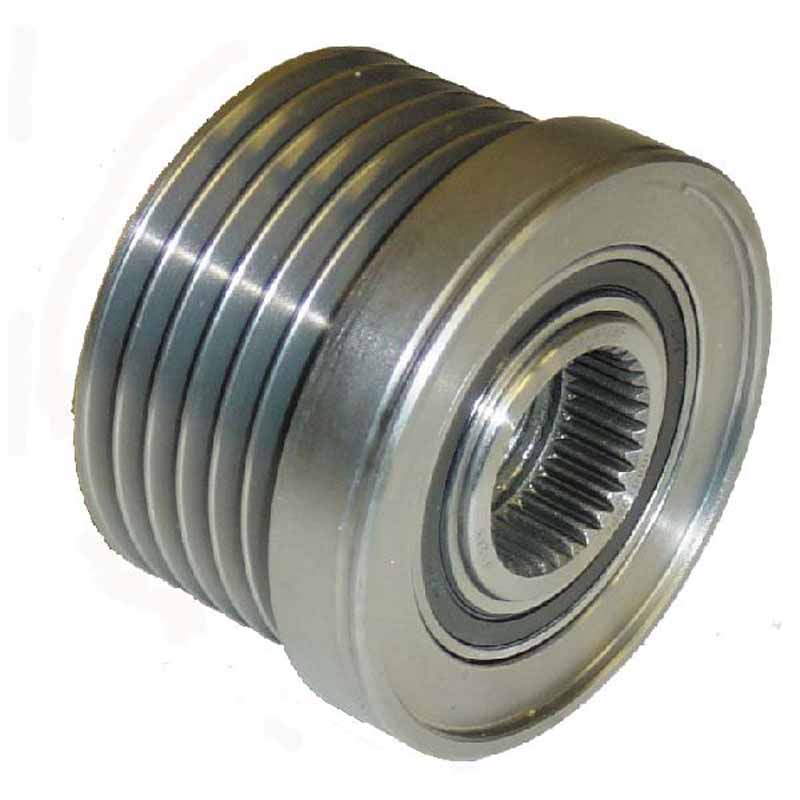

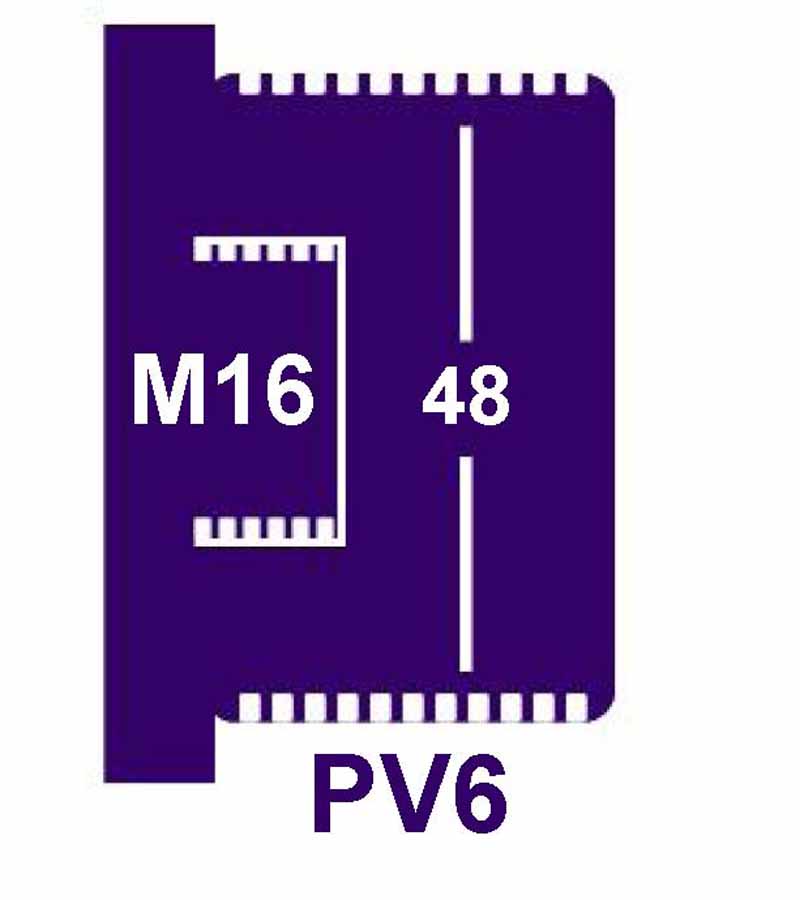

500-458 - Pulley
Replacing F-236528 Application Bosch BMW Clutch Pulley
500-217 - D/E Bearing
ID OD W 17mm 47mm 14mm Seal Both Sides
500-208 - SRE Bearing
ID OD W 17mm 35mm 10mm Seal Both Sides

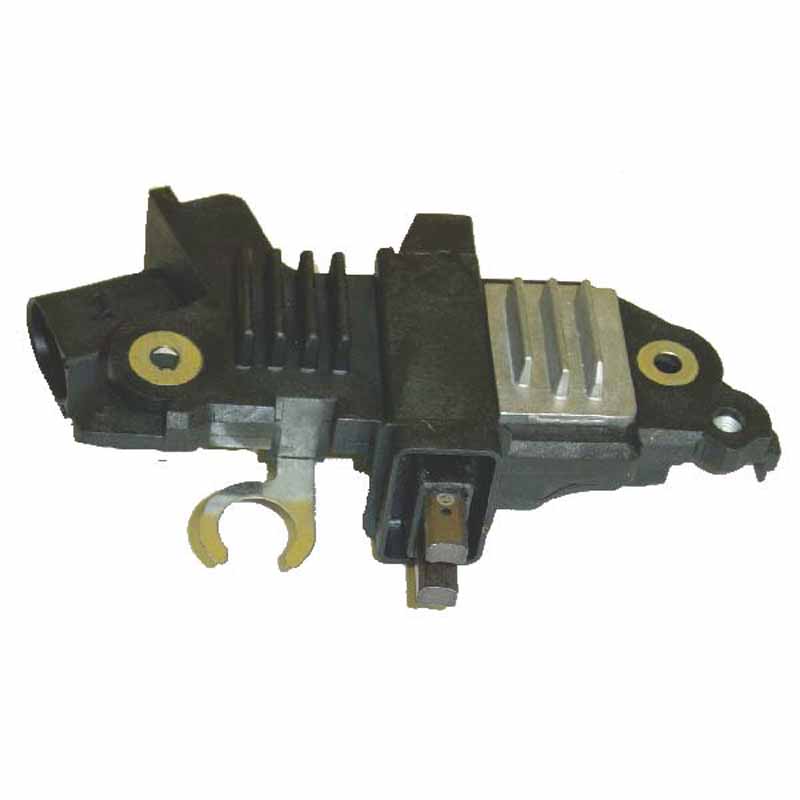

500-7064 - Regulator
Voltage Set Point 14.0V B Circuit
SR005 - Slip Ring
Replacing 135172 Application Bosch IR/IF Alternators
PL15-WL - Alt. Plug
Bosch / Valeo Alternator Plug 2 Pin With 300mm Lead
TR001 - Sundry 1
Bosch 0124 Series Tolerance Ring Fits 6003 Bearings Original Equipment
