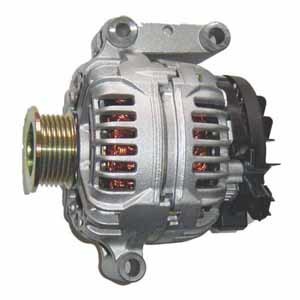

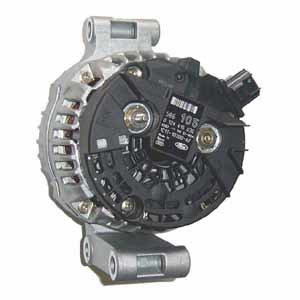

Product and Parts Breakdown for 100-100
500-217 - D/E Bearing
ID OD W 17mm 47mm 14mm Seal Both Sides
500-208 - SRE Bearing
ID OD W 17mm 35mm 10mm Seal Both Sides
500-101 - Regulator
Voltage Set Point 14.5V A Circuit With Soft Start Slipring OD : 14 mm
500-825 - Rectifier
B+ Post = 6 mm Note: Y–wound stator applications Features: 6–50A press–fit avalanche diodes (20–24V)
SR005 - Slip Ring
Replacing 135172 Application Bosch IR/IF Alternators
PL1-WL - Alt. Plug
Ford Alternator Plug 3 Pin With 300mm Lead Fits All Uk 3 Pin Ford Alternators
TR001 - Sundry 1
Bosch 0124 Series Tolerance Ring Fits 6003 Bearings Original Equipment
